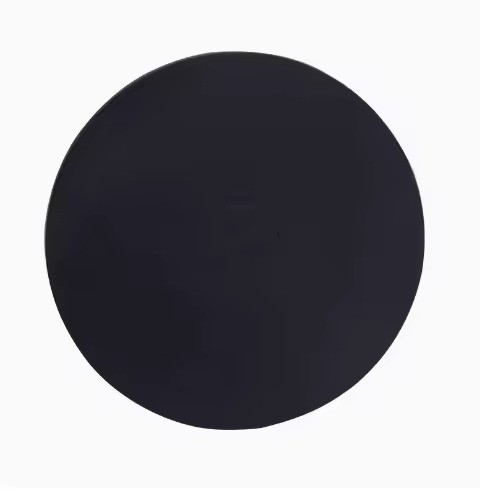

Fiber Optic Polish Rubber Pad

Material: Rubber
Place of Origin: Made in China
Shape: Round
Color: Black
Diameter Options: 4.3" (110mm), 5" (127mm) or Custom
Thickness Options: 5.0mm, 4.0mm, 2.5mm
Thickness Tolerance: ±0.1mm
Durometer (Shore Hardness): Available in 50, 55, 60, 65, 70, 75, 80, 85, and 90 Shore hardness
Packing: 3 pcs/set
Weight: 0.5kg/set

Applications

• Fiber Optic Connectors Polishing: Specifically designed for polishing fiber optic connectors such as SC, LC, ST, FC, and MPO connectors.

• Polishing Machines: Compatible with a range of polishing machines, including:

  • Squared Type Fiber Optic Splicing Turmeric Polishing Machine

  • Central Pressurized Fiber Optic Polishing Machine

  • MPO Polishing Machine



Key Features

• Special Design for Spherical Surfaces: These pads are designed specifically to polish the spherical surface of fiber optic connectors, ensuring precise and even polishing.

• High Surface Hardness: Offers flat and even surfaces for effective polishing.

• 100% Tested: Every pad undergoes rigorous testing for hardness and parallelism to meet A5 standards.

• Multiple Hardness Options: Available in Shore hardness ratings ranging from 50 to 90, catering to various polishing needs.

• Long-lasting Durability: Designed with excellent wear resistance, these pads can handle up to 30,000 repetitions without degradation in performance.

• Superior for 3D Testing: Ideal for 100% 3D testing of fiber optic connectors, ensuring optimal polishing quality.

Benefits

• Cost-Effective Replacement: These high-quality polishing rubber pads are an excellent, more affordable alternative to Seikoh Giken pads, providing similar performance and reliability.

• Versatility: Suitable for various fiber optic polishing machines, making them highly versatile for fiber optic technicians and manufacturers.

• Customizable Options: Choose from a variety of thickness and hardness to match specific polishing needs and requirements for different connector types and processes.

Order Information Guide

List of Polishing Rubber Pads

Suggestions

• Cost-Effective Option: For cost savings, these pads are a great Seikoh Giken alternative. Made in China with high-quality materials, they offer similar performance and durability at a more affordable price point.

• Selecting the Right Pad: The Shore hardness selection depends on the fiber optic connector type and polishing machine being used. A harder pad (e.g., 80-90 Shore) is ideal for more aggressive polishing, while softer pads (e.g., 50-60 Shore) are better for delicate polishing tasks.

Conclusion

Fiber Optic Polish Rubber Pads are a reliable and cost-effective solution for achieving precise and consistent polishing of fiber optic connectors. With customizable thickness, hardness, and durability, they cater to a wide range of fiber optic polishing needs. Whether you're polishing SC, LC, MPO, or ST connectors, these pads offer long-lasting performance, excellent wear resistance, and smooth finishes, making them an essential tool for any fiber optic technician or manufacturer.

If you need additional information or assistance with your order, feel free to reach out!
