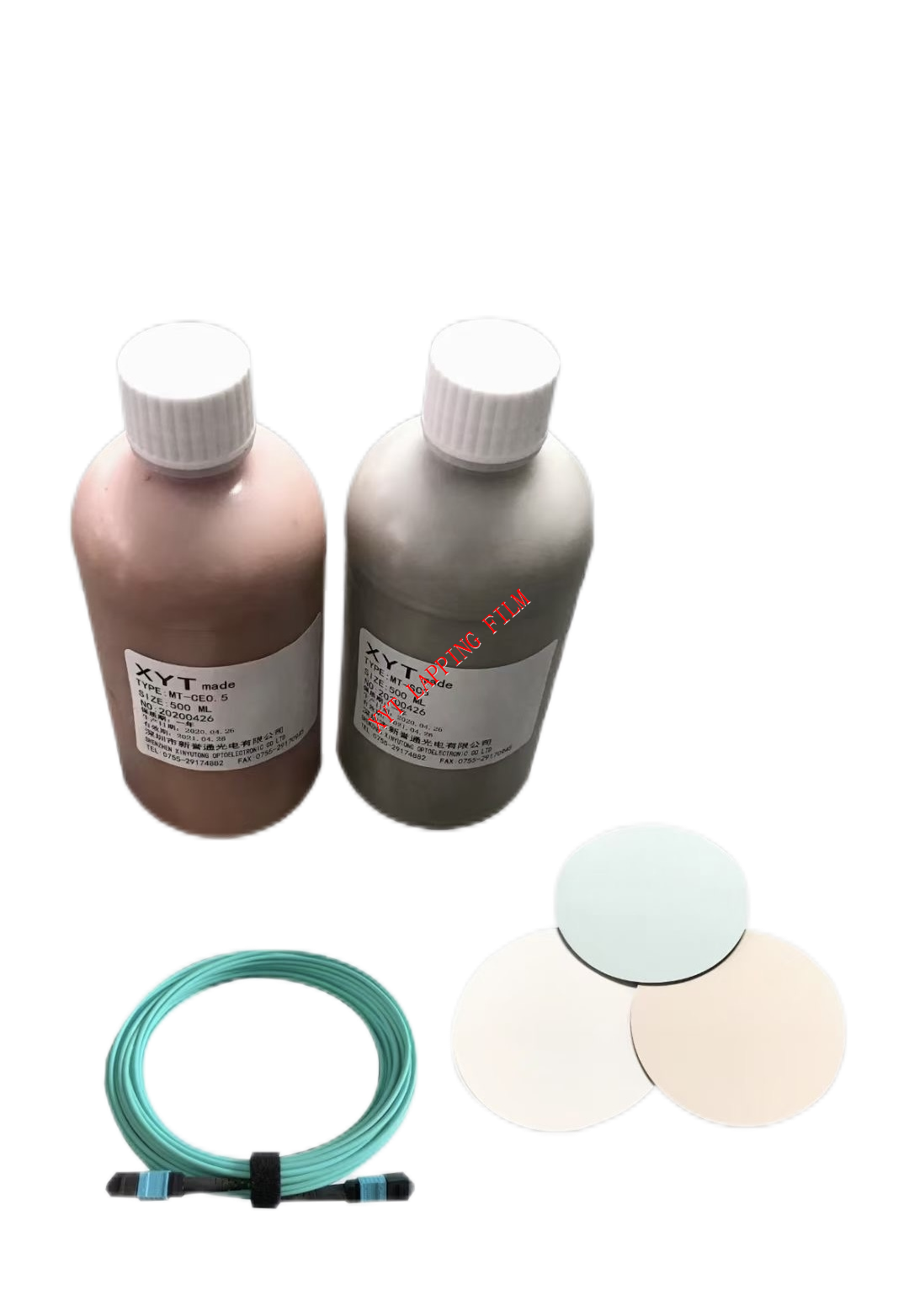

Polishing Liquid for Fiber Optics and MT Ferrules: Achieve Superior Connector Performance

Polishing liquid for fiber optics—especially for MT ferrules used in MPO/MTP connectors—is a critical component in achieving high-quality, low-loss optical connections. Used in conjunction with lapping films and polishing machines, this specialized fluid improves surface quality, end-face geometry, and reliability in high-speed fiber optic networks.

What Is Fiber Optic Polishing Liquid?

Polishing liquid (also called polishing slurry or lubricant) is a water-based or alcohol-based fluid formulated to:

• Lubricate the surface during polishing

• Reduce heat and friction

• Disperse polishing debris

• Enhance abrasive effectiveness

• Minimize scratches and defects

Unlike generic lubricants, fiber optic polishing liquids are chemically stable, residue-free, and safe for use with sensitive optical materials such as zirconia, epoxy, and glass.

Why MT Ferrules Require Specialized Polishing Liquids

MT ferrules are multi-fiber alignment structures used in MPO and MTP connectors. These connectors demand precise end-face geometry, including:

• Low insertion loss (IL)

• High return loss (RL)

• Controlled apex offset, fiber height, and undercut

Because MT ferrules contain 12, 16, 24, or more fibers, polishing must ensure uniform contact across all fibers. The polishing liquid helps ensure consistent abrasive action and clean, defect-free finishes.

Polishing Liquid vs. Grit Compatibility

Tip: For final polishing (≤ 1µm), use low-viscosity liquids that enhance lubrication without leaving residue or interfering with surface quality.

Compatible with All Polishing Films

Polishing liquids are designed for use with a wide range of lapping films:

Using the correct polishing liquid for each stage improves film life, cut rate, and final geometry.

Applications

• MPO/MTP connector polishing (12F, 16F, 24F, 48F MT ferrules)

• SC, LC, ST connector final polishing

• Bare fiber stub polishing in cable assembly

• Cross-section sample prep for inspection/analysis

Benefits of Using Polishing Liquid

• Cleaner finish – Reduces micro-scratches and epoxy residue

• Smooth lubrication – Prevents ferrule chipping or fiber breakout

• Improved polishing speed – Boosts abrasive film performance

• Extended film life – Lowers cost per polish

• Enhanced optical performance – Helps achieve IL < 0.35 dB, RL > 55 dB

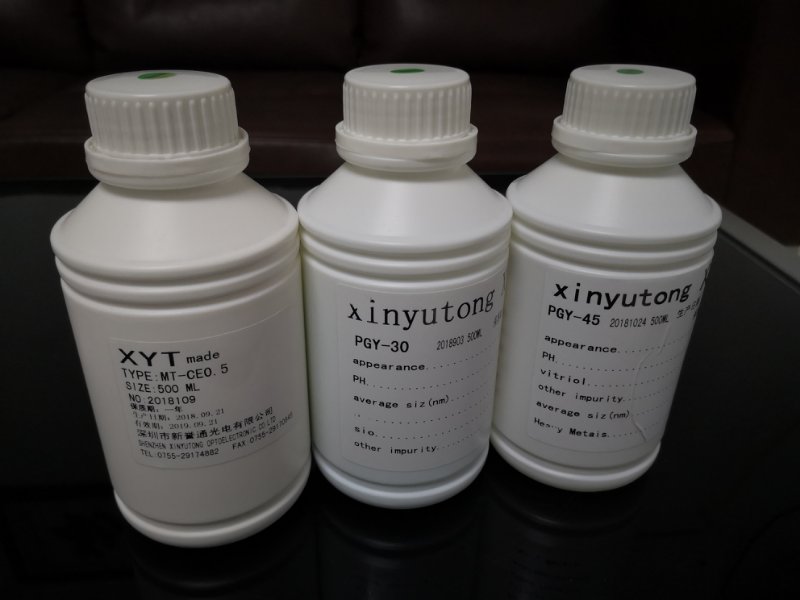

Available Types and Packaging

Packaging Options:

• 100 ml squeeze bottles (manual use)

• 500 ml refill bottles (semi-automated use)

• 1L and 5L jugs for production lines

Usage Tips

• Apply 2–3 drops evenly across the polishing film.

• Re-apply when the film starts to dry or lose friction.

• Use only polishing liquid recommended for optical connectors (no oil-based fluids).

• Always clean ferrules and polishing pads between steps.

Conclusion

A high-quality polishing liquid for fiber optics and MT ferrules is essential for achieving reliable, high-performance connectors. Whether you’re polishing a single MTP connector or managing a high-volume fiber production line, the right polishing fluid helps ensure precision, repeatability, and long-term durability.
